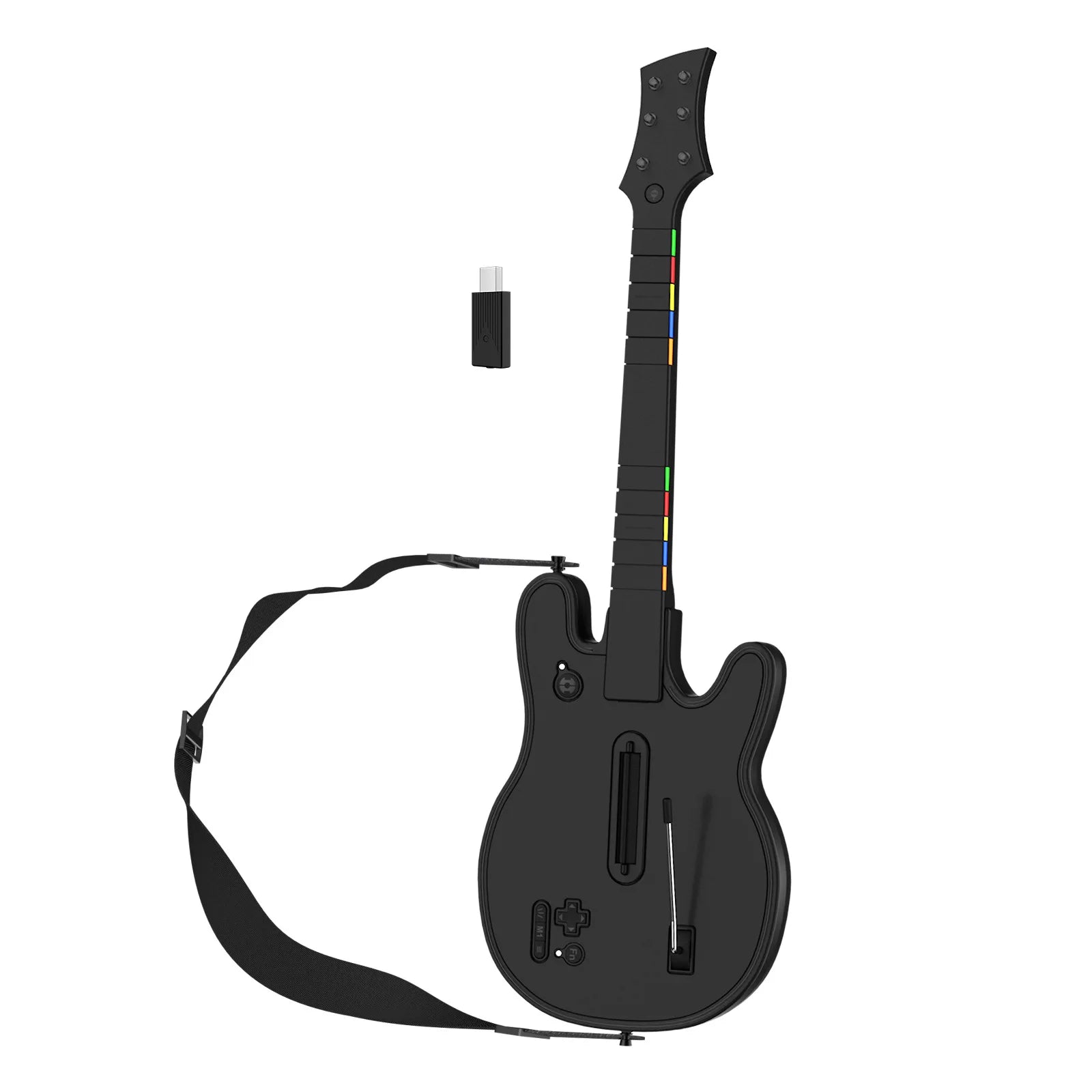

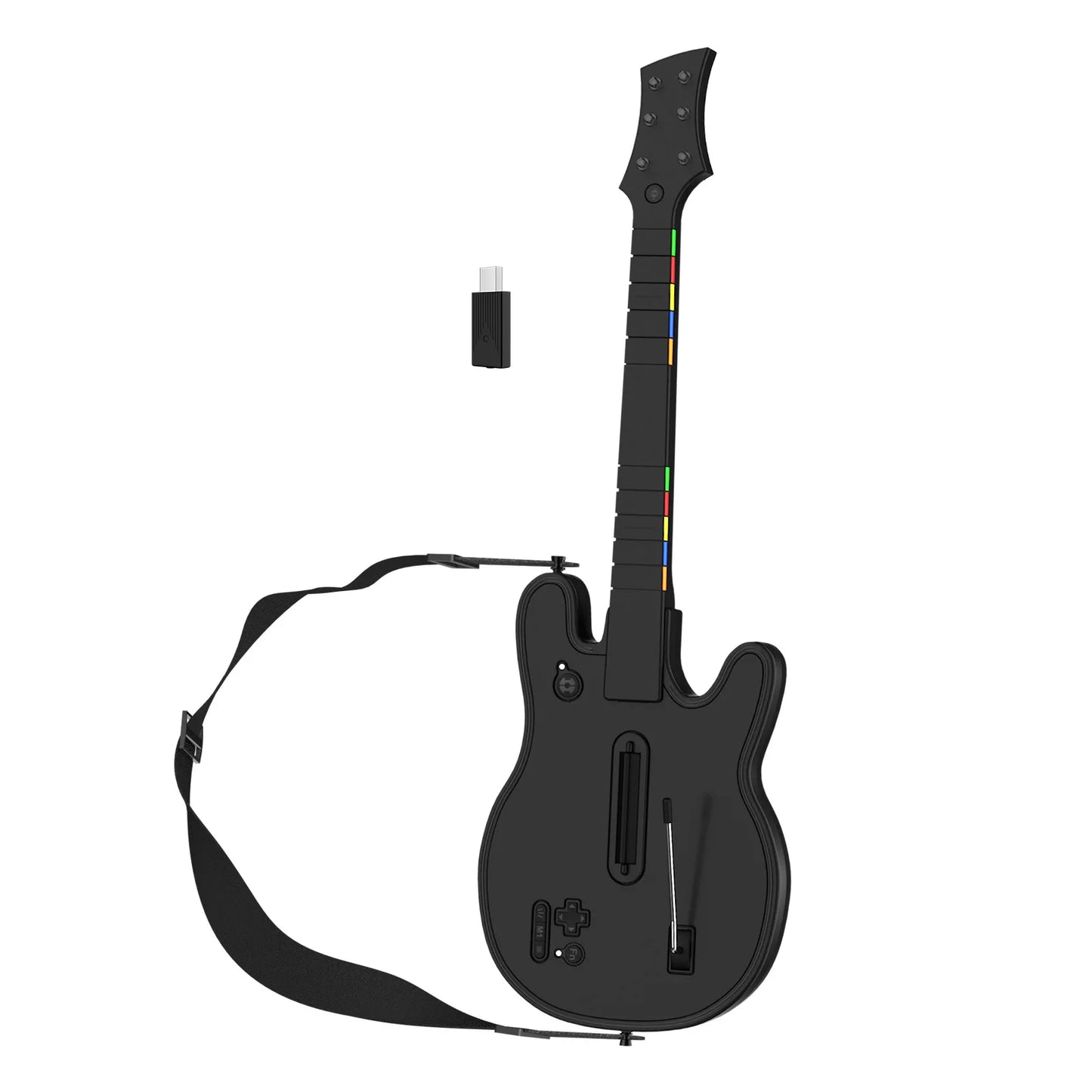

Connecting the Wireless Guitar Controller:
1. Insert the included wireless USB adapter into your console. The LED light on the adapter will start blinking slowly.
2. Press and hold the PS button on the front of the guitar for 2 seconds to turn on the guitar's power. The wake - up indicator light and the communication indicator light will blink slowly, and the guitar will automatically connect to the receiver.
3. Once the guitar is connected to the receiver, the wake - up indicator light on the guitar and the LED on the receiver will stay on constantly. The communication indicator light will turn off.
4. If you are playing Fortnite Festival (FF) or Rock Band 4 (RB4) on the PS4 platform, switch the mode - change button at the bottom of the guitar to the corresponding position. If you are not playing these two games on the PS4 platform, you can skip this step.
5. To turn off the guitar, press and hold the PS button on the guitar for 5 seconds until the blue status LED goes out.
When the Guitar and Receiver Fail to Connect, Follow These Pairing Steps:
1. Insert the receiver into the console and press the pairing button at the bottom of the receiver to put it in pairing mode. The LED indicator will blink red rapidly.
2. Press and hold the PS button on the front of the guitar for 2 seconds, then briefly press the Fn key to put the guitar in pairing mode to search for new devices. The communication indicator light will blink rapidly.
3. Once the guitar is connected to the receiver, the wake - up indicator light on the guitar and the LED on the receiver will stay on constantly, and the communication indicator light will turn off.
Audio Settings: The wireless guitar controller has a 3.5mm audio jack at the bottom, which can be used to connect wired headphones for audio output and microphone input.
a) To adjust the game volume, press and hold the "Fn" button and use the up/down arrow keys.
b)To mute the microphone, press the "Fn" button twice. When muted, the communication indicator light will turn blue. When playing the "Guitar Hero" series on PS3 or PC platforms, since the game itself has no sound, there will be no audio output from the guitar's audio interface.

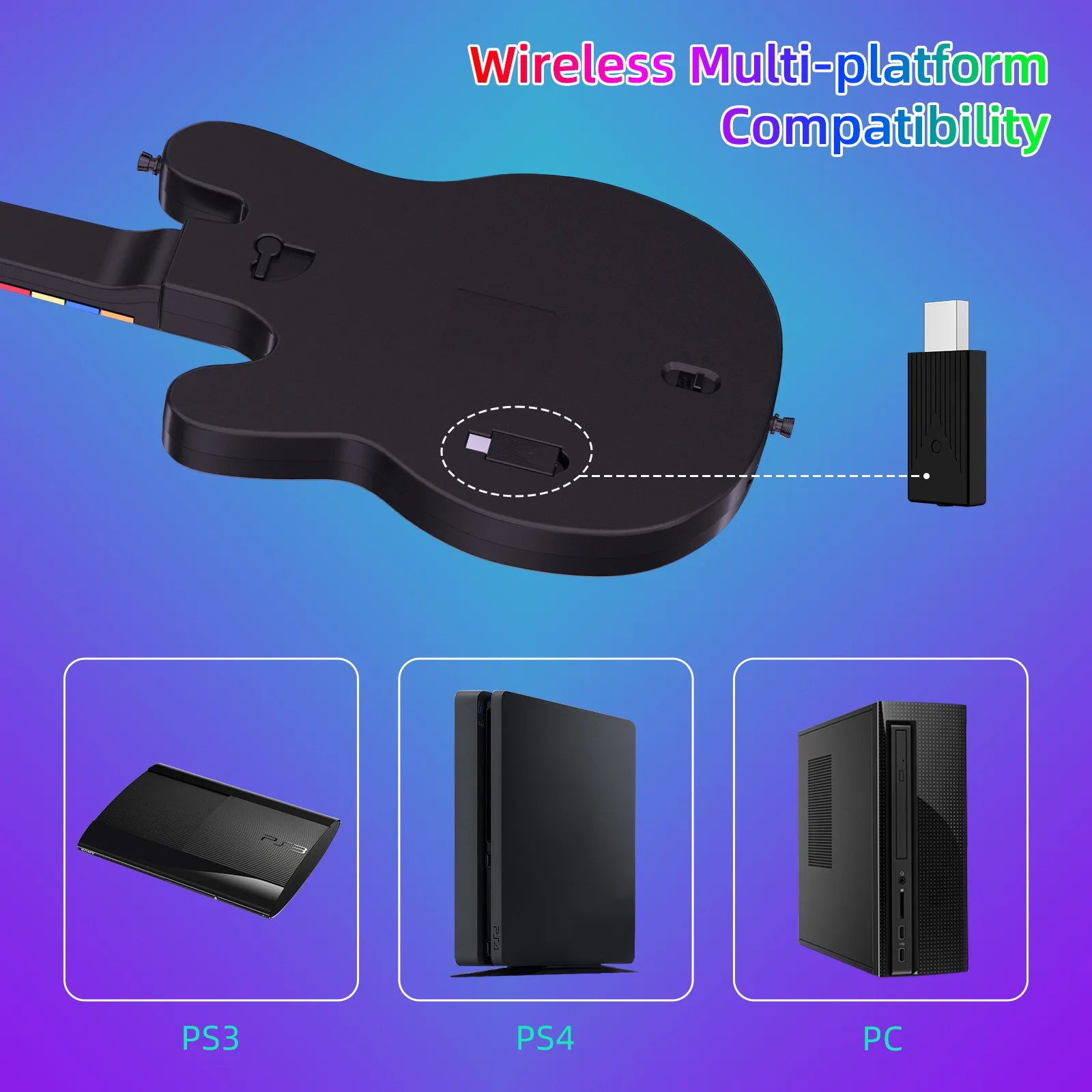

Compatible Platforms/Games:
PC: Guitar Hero 3 - 5, CloneHero
PS3: Rockband 1 - 3, Guitar Hero 3 - 5, BandHero
PS4: RockBand 4, Fortnite Festival
Charging the Guitar: The guitar has a built - in rechargeable lithium - ion battery, providing up to 25 hours of gameplay per single charge.
1. Charging steps: Use the included USB - C cable. Connect one end to the USB - C port of the guitar and the other end to the USB port of the game console.
2. Charging in power - off state: The wake - up light will blink and turn off when fully charged. Charging in connected state: The wake - up light will blink, and then the connection status of the guitar will be preferentially displayed. When the guitar's battery is low, the communication indicator light on the guitar will blink blue once every 3 seconds to indicate low battery.
Product Parameters:
Connection Method: 2.4G Wireless Connection
Battery Capacity: Built - in 2000mAh Lithium Battery
Input: Type C 5V 1A
Operating Voltage: 3.7V - Operating Current: 80 - 100mA
Charging Current: 5V - 0.8A

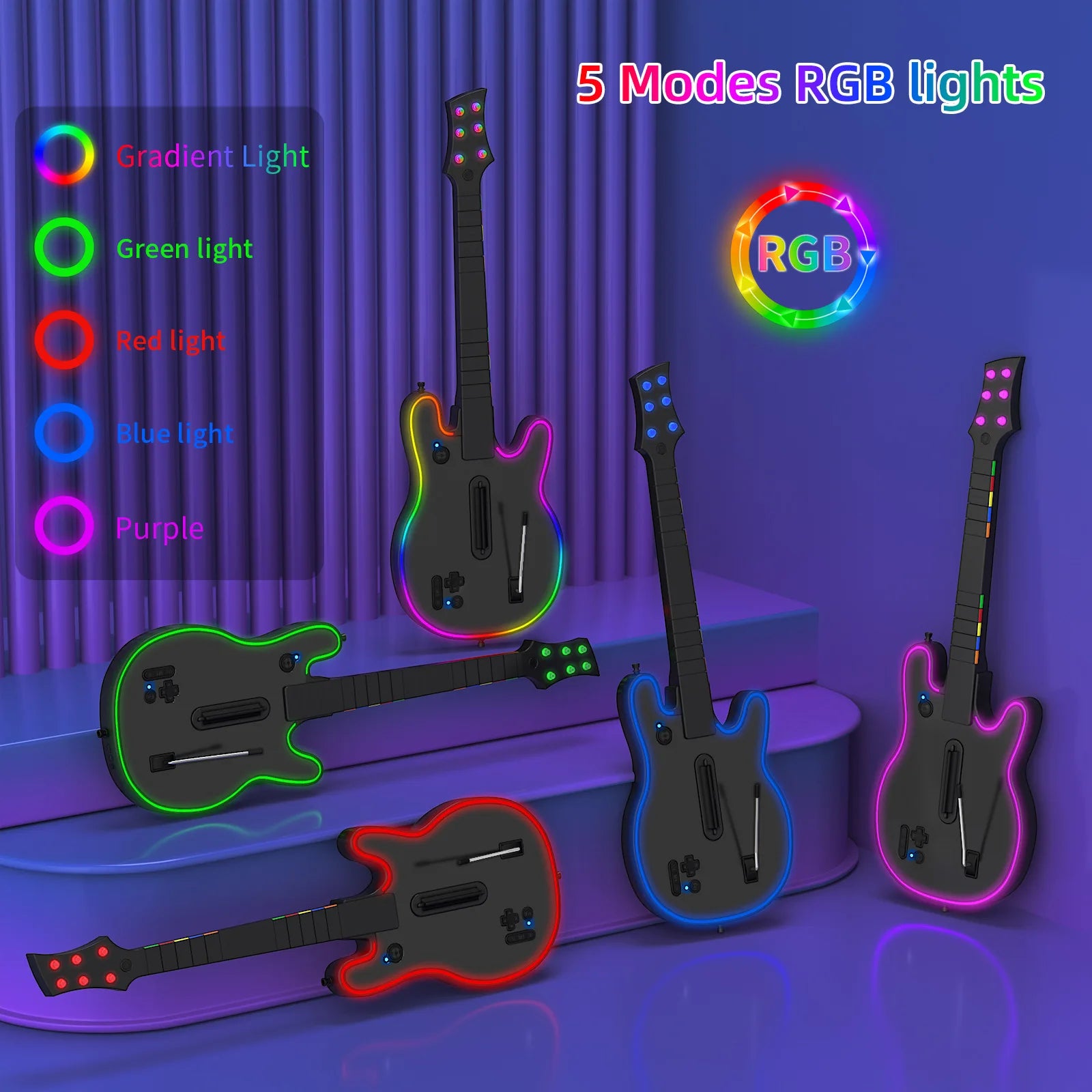

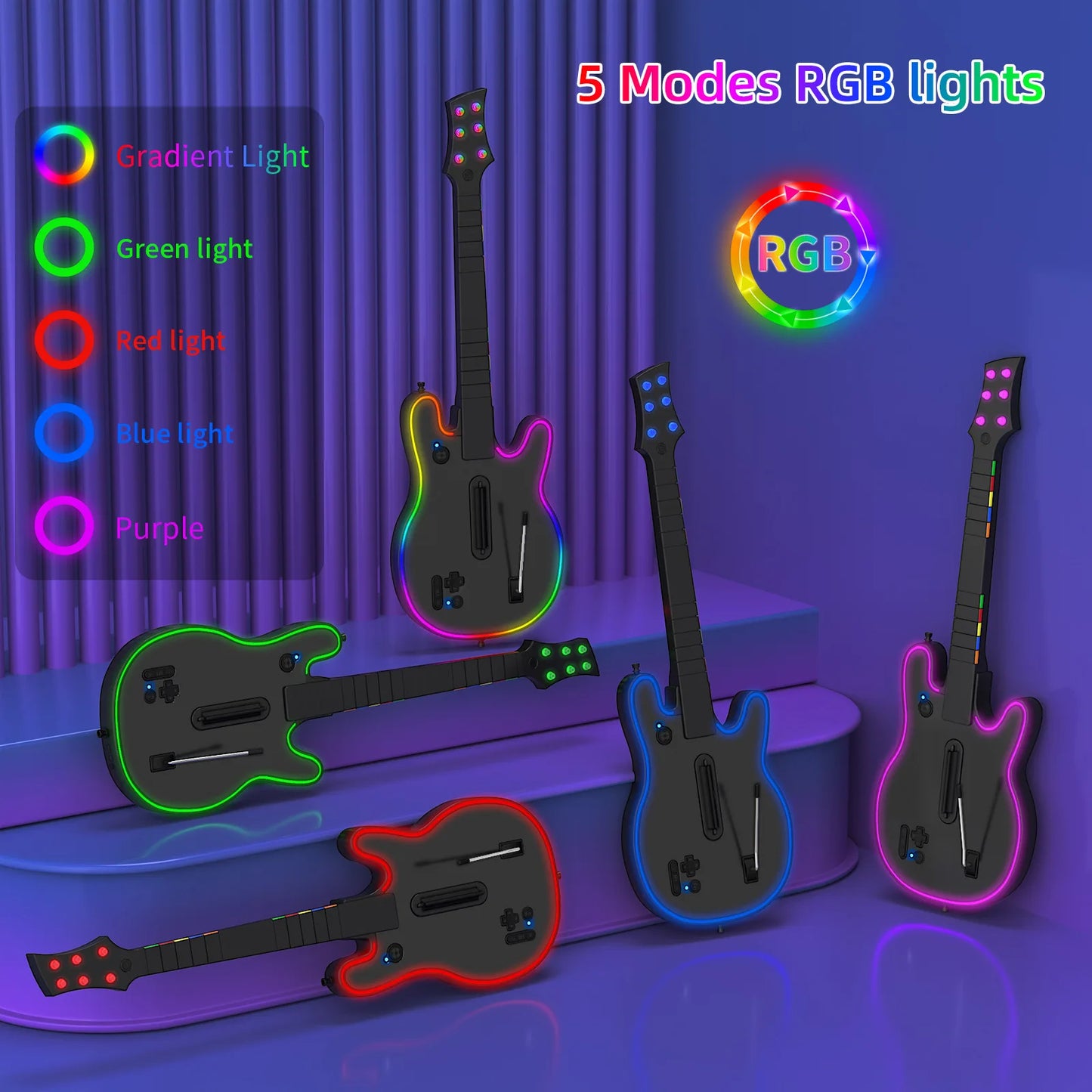

Operating Time: Approximately 25 hours, approximately 20 hours with RGB on
