SPECIFICATIONS

Accessories Type: Motherboard

Brand Name: HISPEEDIDO

Compatible Brand/Model: Nintendo

Compatible Nintendo Model: Nintendo GameCube

Electric: Yes

High-concerned chemical: None

Model Number: GC-1000

Origin: Mainland China

With USB: NO

is_customized: NO

iBlueControlMod NGC Bluetooth Wireless Controller Internal Adapter For GameCube Console Wireless Controller Adapter For NGC Console

Note: this kit not 'BlueRetro mod'. BlueRetro APP can't use on this kit.

Don't upgrade 'BlueRetro firmware' to this kit! Otherwise, this kit will be damaged.

Compatible Controllers:

Support PS3 / PS4 / PS5 / Xbox One S / Xbox Series X|S / Wii / Wii U Pro / Switch Pro/ Switch Joycon Wireless Controllers, etc.

Description：

iBlueControlMod adapter is a high speed
Bluetooth controller interface that opens retro consoles up to the plethora of
modern controllers with latencies that even some wired adapters can't manage.
This new board allows for the use of up to 4 connected Bluetooth controllers,
and can be mixed and matched with wired controllers on any of the ports for
seamless operation.

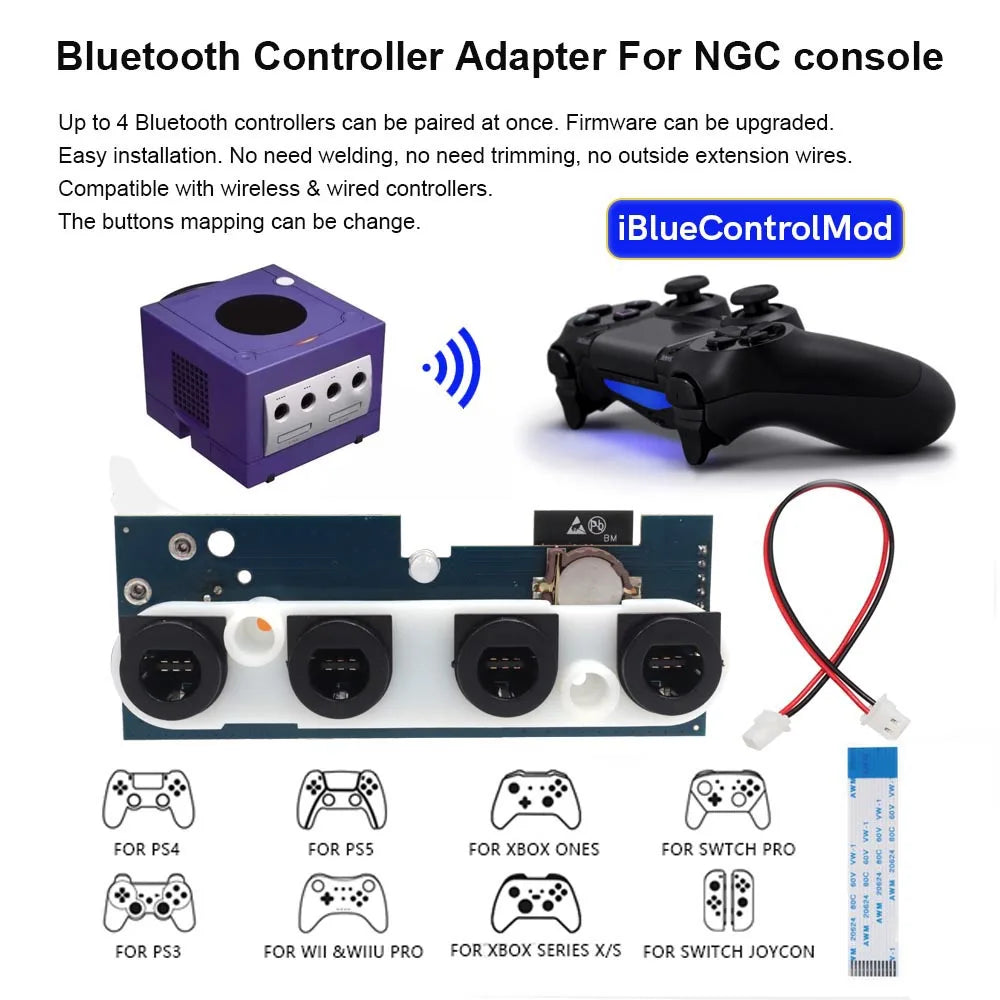

Features:

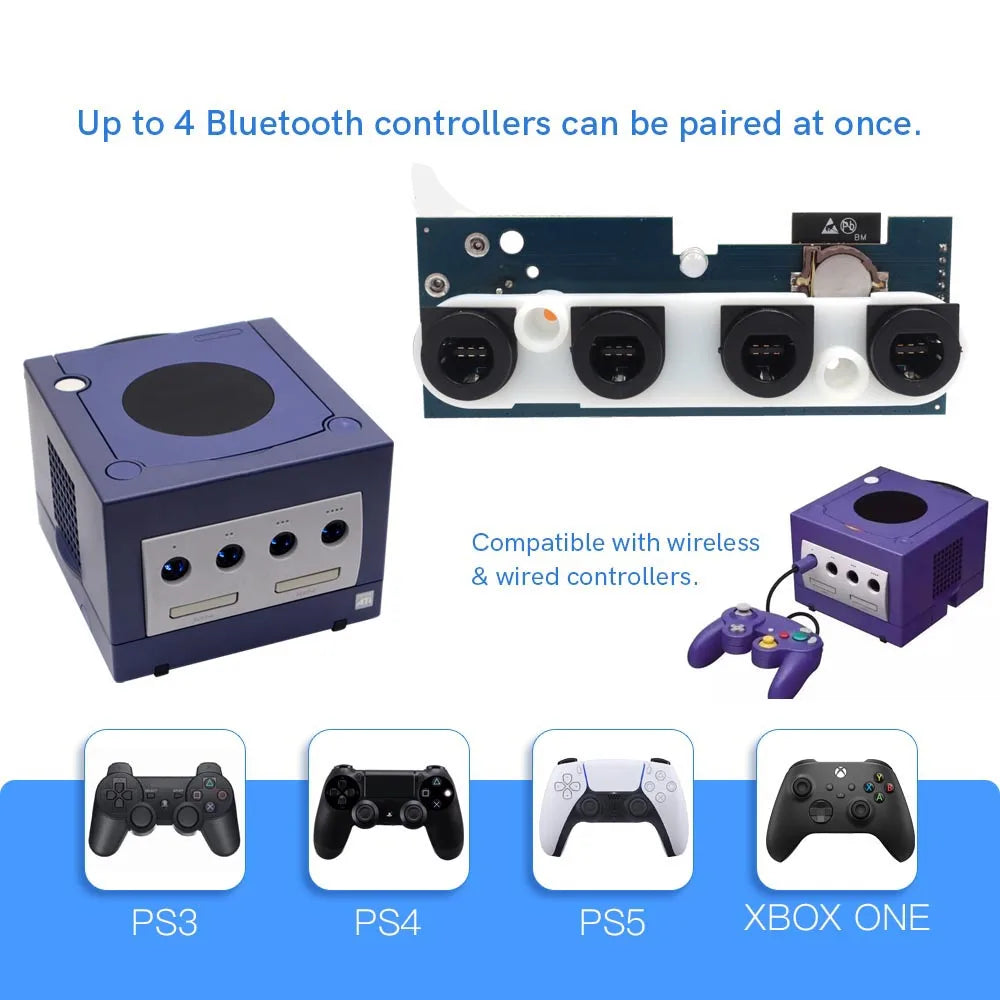

lUp to 4 Bluetooth controllers can be paired at once.

lNo need welding, no need trimming, no outside extension wires.

lEasy installation, good choice for green hands, just open shell and
put the mod adapter inner machine to enable consoles connecting wireless
joypads.

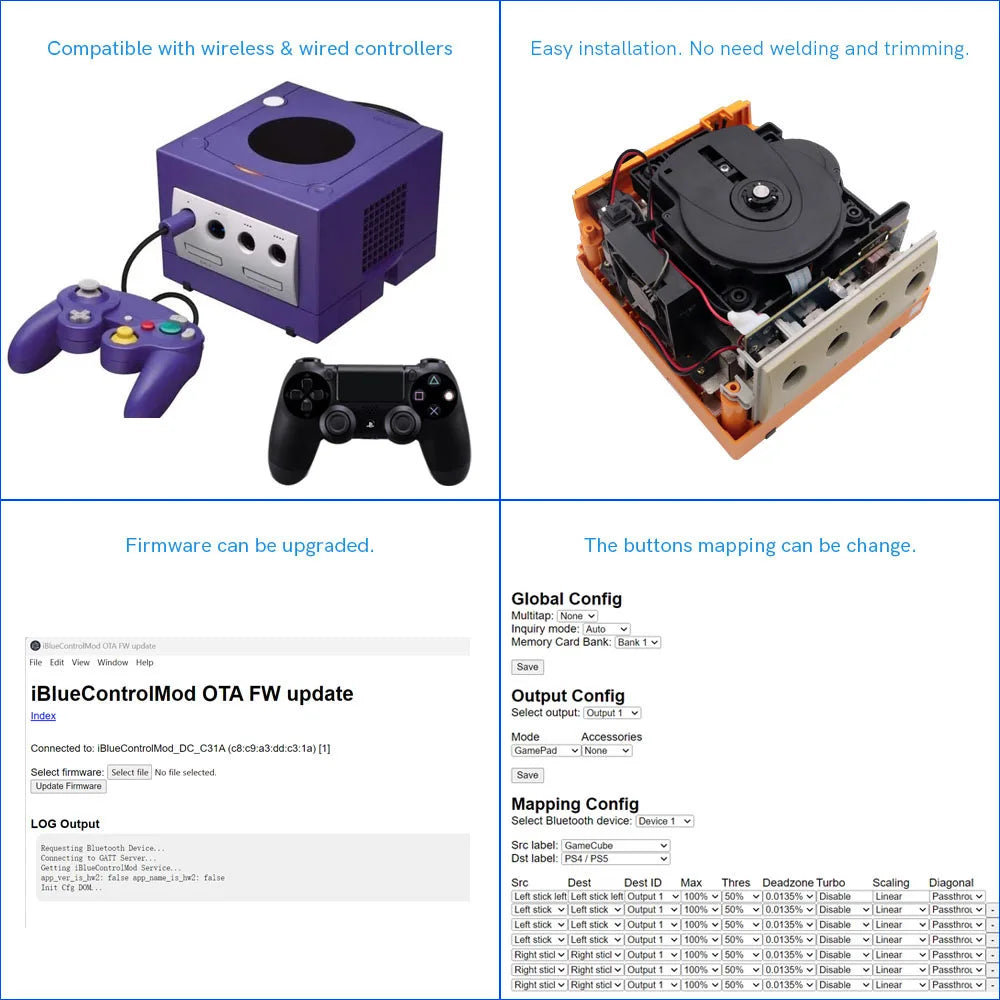

lEasy firmware update tool that only requires a Bluetooth enabled
device like a computer (incompatible phone).

lConfigurable button mapping using a applications software on a
computer.

lGameCube wired controllers are still available after updating this Bluetooth
mod.

lBuilt in LED indicator, make connecting more clear.

lReplaceable socket for CR1220.

lSimple installation requiring only screwdrivers (Gamebit 4.5mm and
Philips #2)

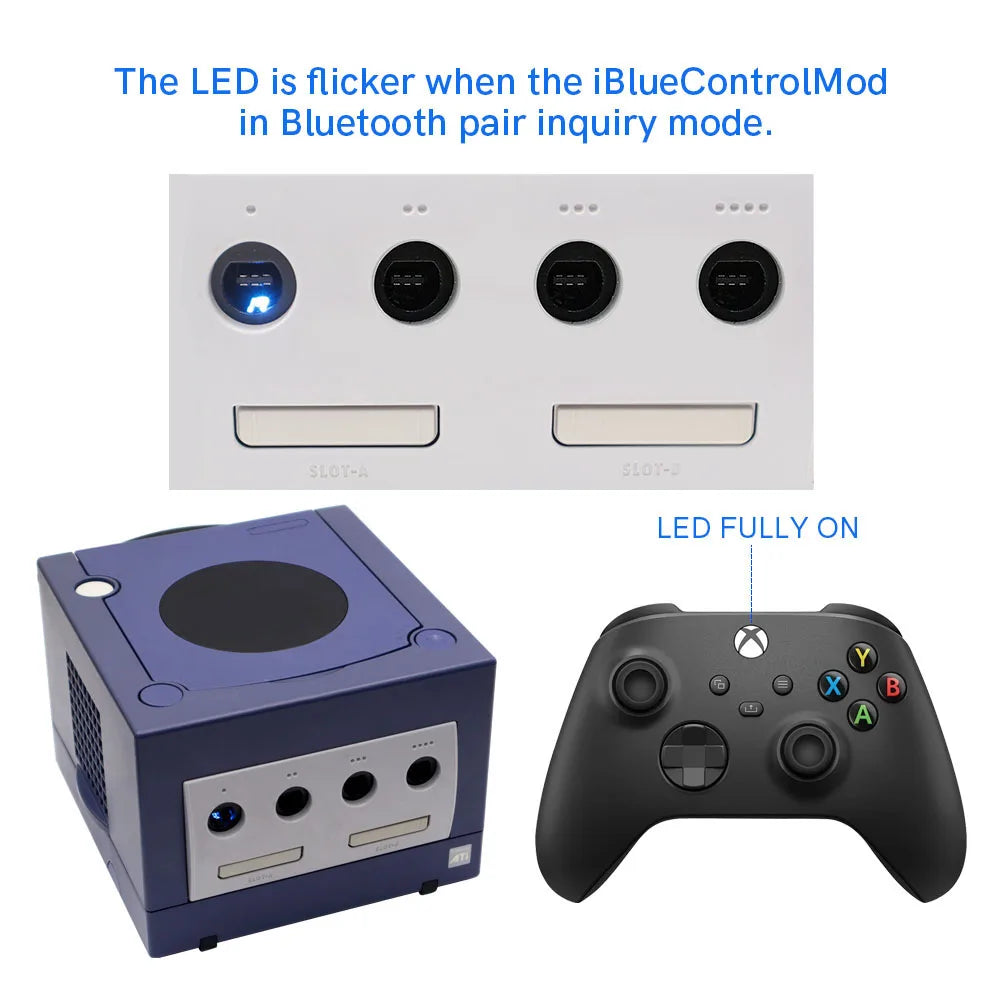

Reset Button Usage:

The reset button on the console has been
converted to offer new functionality based on how long you hold the button
down. While it is being pressed the front ports will light up to show which
state you will be enabling.

1.Holding for 0-3 seconds will perform the
same action as on a stock console, reset.

In this state all four front port LEDs will
be solid on.

2.Holding for 4-6 seconds will disconnect
all connected Bluetooth controllers

In this state all four front port LEDs will
be slowly blinking.

3.Holding for 7-9 seconds will enable
pairing mode

In this state all four front port LEDs will
be blinking faster

4.Holding for 10 seconds or more will
factory reset to the original firmware and remove any custom configs

In this state all four front port LEDs will
be blinking rapidly.

5. Hold reset button while powering on the iBlueControlMod
adapter will be in sleep mode and will not interfere with the console use this
in the event that a peripheral is not working nicely with iBlueControlMod.

Include:

1x iBlueControlMod adapter.

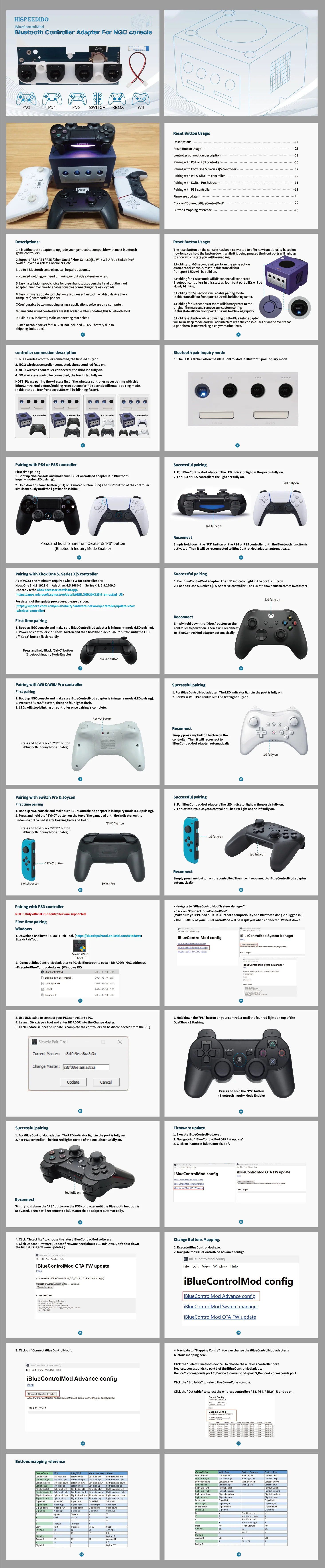

1xSD Card (include iBlueControlMod Applications and manual.)

===Installing instruction===
